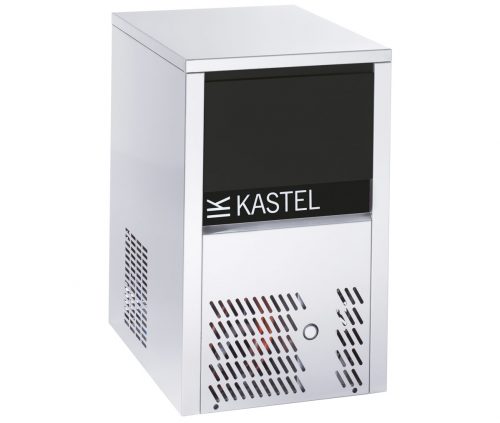

The SP series solid cube ice makers are made entirely of stainless steel.
They are top of the Kastel range and incorporate all the latest technology to ensure maximum efficiency and enduring performance. The ice cube is formed by water being sprinkled onto a horizontally mounted copper evaporator which then cools off forming high density, pure, crystal clear, solid ice cubes.
Models SP
SP 25/6
Dimensions (WxDxH): 365x495x600 mm
24 hr production (21°C – 15°C ): 25 Kg
Storage capacity: 6 Kg
Ice type: Cubetto pieno 36 gr
Cooling system: A/W
Total power: 500 W
- Ice cube dimensions (WxDxH):
42x45 mm
SP 30/10
Dimensions (WxDxH): 365x495x690 mm
24 hr production (21°C – 15°C ): 30 Kg
Storage capacity: 10 Kg
Ice type: Cubetto pieno 36 gr
Cooling system: A/W
Total power: 600 W
- 36 gr - L42 x A45 mmIce cube dimensions (WxDxH):
42x45 mm
SP 37/15
Dimensions (WxDxH): 500x585x685 mm
24 hr production (21°C – 15°C ): 37 Kg
Storage capacity: 15 Kg
Ice type: Cubetto pieno 36 gr
Cooling system: A/W
Total power: 700 W
- Ice cube dimensions (WxDxH):
42x45 mm
SP 45/15
Dimensions (WxDxH): 500x585x685 mm
24 hr production (21°C – 15°C ): 45 Kg
Storage capacity: 15 Kg
Ice type: Cubetto pieno 36 gr
Cooling system: A/W
Total power: 700 W
- 36 gr - L42 x A45 mm
SP 50/25
Dimensions (WxDxH): 500x585x795 mm
24 hr production (21°C – 15°C ): 50 Kg
Storage capacity: 25 Kg
Ice type: Cubetto pieno 36 gr
Cooling system: A/W
Total power: 800 W
- Ice cube dimensions (WxDxH):
42x45 mm
SP 60/40
Dimensions (WxDxH): 740x605x965 mm
24 hr production (21°C – 15°C ): 60 Kg
Storage capacity: 40 Kg
Ice type: Cubetto pieno 36 gr
Cooling system: A/W
Total power: 1050 W
- Ice cube dimensions (WxDxH):
42x45 mm
SP 80/40
Dimensions (WxDxH): 740x605x965 mm
24 hr production (21°C – 15°C ): 80 Kg
Storage capacity: 40 Kg
Ice type: Cubetto pieno 36 gr
Cooling system: A/W
Total power: 1050 W
- Ice cube dimensions (WxDxH):
42x45 mm
SP 90/60
Dimensions (WxDxH): 740x605x1065 mm
24 hr production (21°C – 15°C ): 90 Kg
Storage capacity: 60 Kg
Ice type: Cubetto pieno 36 gr
Cooling system: A/W
Total power: 1200 W
- Ice cube dimensions (WxDxH):
42x45 mm
SP 130/75
Dimensions (WxDxH): 840x745x1120 mm
24 hr production (21°C – 15°C ): 130 Kg
Storage capacity: 75 Kg
Ice type: Cubetto pieno 36 gr
Cooling system: A/W
Total power: 1700 W
- Ice cube dimensions (WxDxH):
42x45 mm
SP 140
Dimensions (WxDxH): 865x560x730 mm
24 hr production (21°C – 15°C ): 140 Kg
Ice type: Cubetto pieno 36 gr
Cooling system: A/W
Total power: 1900 W
Usable ice bin:
ST S 250, ST S 400
- Ice cube dimensions (WxDxH):
42x45 mm
SP 280
Dimensions (WxDxH): 1255x595x860 mm
24 hr production (21°C – 15°C ): 280 Kg
Ice type: Cubetto pieno 36 gr
Cooling system: A/W
Total power: 2700 W
Usable ice bin:
ST S 400
- Ice cube dimensions (WxDxH):
42x45 mm
